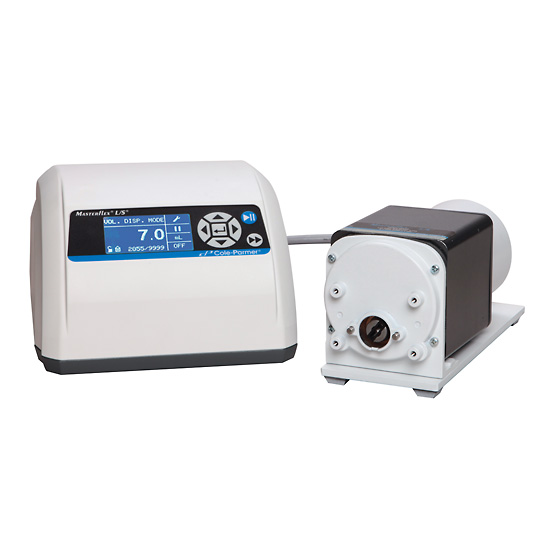

Masterflex L/S Digital Modular Drive w/ Remote I/O; 600 rpm
Precision digital drives offer three dispensing modes and precision low-maintenance motors— modular format lets you place motor and controller where convenient.
- Flow rate 0.0012 to 3400 mL/min with L/S tubing. Flow rate depends on drive rpm and tubing size.
- Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually
- Menu-driven interface lets you select one of seven languages for programming and operation
- Dispense by Volume in mL (0.001 to 99999 mL), L, or gal; Copy—1 to 9,999 dispense cycles; or Time—time interval of on/off cycles (1 sec to 99 hr, 59 min, 59 sec per cycle)
- Antidrip function ensures dispense accuracy
- Reversible motor—purge tubing before or after pumping; pump fluid in either direction
- Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio
- Powerful motors let you stack pump heads for increased flow rates and for multichannel applications
- Speed control input scalable 0 to 20 mA, 4 to 20 mA, or 0 to 10 V
- Pumping direction requires open collector or contact closure
- Start/stop/purge requires open collector or contact closure
- Tachometer output scalable 0 to 20 mA, 4 to 20 mA, 0 to 10 V, open collector
- Stackable, splash-resistant ABS plastic controller housing is IP33 rated; drive housing is epoxy finished steel, IP33 rated
- 6-ft (1.8-m) cable connects drive and controller
- Remote control capabilities via a DB25 female connector on back of controller
