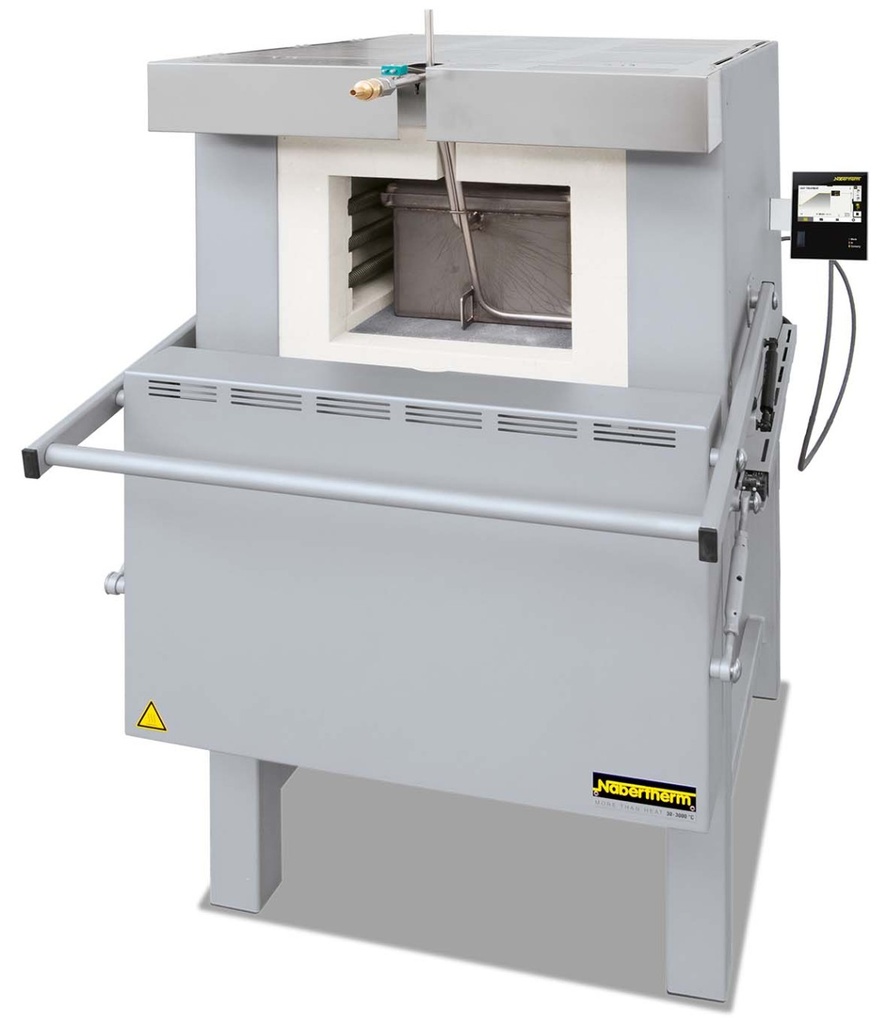

To withstand harsh use in the laboratory, e.g. when heat-treating metals, robust insulation with light refractory bricks is necessary. The chamber furnaces N 7/H - N 87/H are a perfect fit to solve this problem. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium in medical applications can be implemented without the use of expensive and complicated annealing systems.

Standard Equipment

Tmax 1280 °C

Deep furnace chamber with three-sides heating: from both side walls and bottom

Heating elements on support tubes ensure free heat radiation and a long service life

Bottom heating protected by heat-resistant SiC plate

Temperature uniformity up to +/− 10 °C according to DIN 17052-1

Low energy consumption due to multi-layer insulation

Base frame included in the delivery, N 7/H - N 17/HR designed as table-top model

Parallel guided downward swinging door (user protected from heat radiation)

Door movement cushioned with gas dampers/struts

Controller B500 (5 prgrams with each 4 segments)

Defined application within the constraints of the operating instructions

NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
