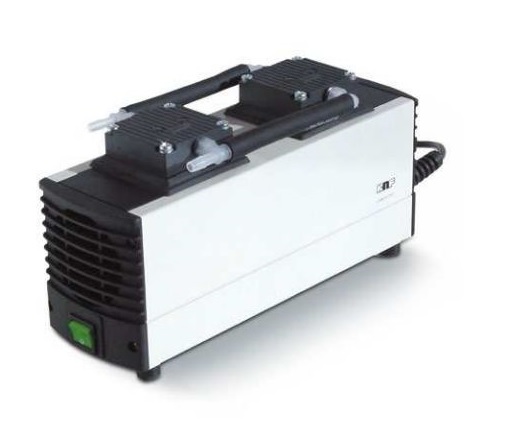

Mini Diaphragm Vacuum Pumps LABOPORT®, N 816.1.2 KT.18
-Application: Filtration, SPE, Degassing, Fluid aspiration
-Flow rate up to 1.8 m≥/h / Ultimate vacuum up to 15 mbar abs.
-Has a very small footprint
-PTFE-coated diaphragm is ideal for aggressive/corrosive gases and vapors

Specifications
Type N 816.1.2 KT.18
Operating pressure: 0.5 bar
Max. pressure: 0.5 bar
Ultimate vacuum: 160 mbar (abs)
Flow rate: 30 L/ min
Connectors for tube: ID 6 mm
Permissible media and ambient temperature: 5 to 40 °C
Pump head: PPS
Diaphragm: PTFE-coated
Valves: FFPM
Protection class: IP 20
Dimensions (W x H x D): 102 x 141 x 361 mm
Weight: 3.95 kg
Voltage: 230 V
Power: 100 W
Frequency: 50 Hz
With thermal switch and power fuse
