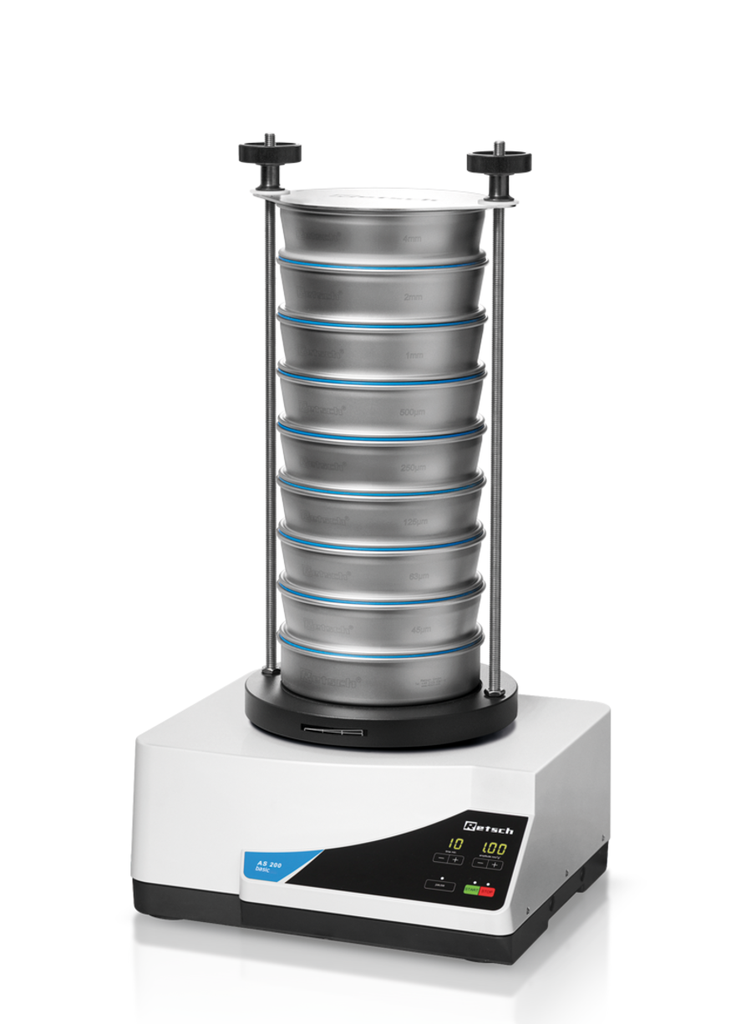

Analytical Sieve Shakers AS 200 basic

Sieve shakers are used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring.
AS 200 basic: Favourably priced basic model.
Features:
-Sieving with 3D effect
-For wet and dry sieving
-Short sieving times
-Low-noise, maintenance-free

Please order clamping device, test sieves and collecting pan separately.

Specifications
Applications: separation, fractioning, particle size determination
Max. number of fractions (depending on sieve size): 9/17
Movement of sample: orbital with vibration
Height of sievetower: up to approx. 510 mm
Measuring range*:  20 µm - 25 mm
Max. charge/quantity of sample: 3 kg
Max. mass of sieve stack: 4 kg
Amplitude: digital, 1 - 100% (0 - 3 mm)
Timer: digital
Time display: 1 - 99 min
Measuring range: 20 µm - 25 mm
Protection code: IP 54 / IP 20
Electrical supply: different voltages
Power connection: 1-phase
Dimensions (W x D x H): 417 x 384 x 212 mm
Weight: 35 kg
Standards CE

*depending on feed material and instrument configuration/settings

Type AS 200 basic
For Sieve sizes (diam.) 100 / 150 / 200 / 203 mm (8")
