Carbon Dioxide Safety Monitor AX60
Gas warning device for precise measurement of the amount of CO2 in the air. 3 alarm settings factory set: Time-weighted average (TWA) alarm (5000 ppm; 0.5% CO2), Low alarm (15,000 ppm; 1.5% CO2) and High alarm (30,000 ppm; 3% CO2)
-No calibration required (unless local regulations state otherwise)
-Very long life sensor can last up to 15 years
-Up to 4 x CO2 sensors and 8 x CO2 alarms can be used per Central Display Unit
-Supplied with a relay on each alarm which can be used to trigger ventilation, extraction or a building management system
-Easy installation and maintenance can be conducted by the user
-Additional (quick connect) CO2 sensors and alarms available if more than one entrance to the laboratory or more than one risk area
-Assists in compliance with Exposure Limit regulations such as EH40.

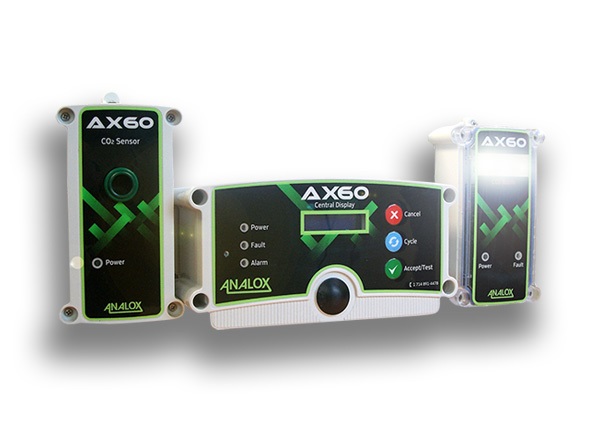

Scope of delivery: wall-mounted central display unit, CO2 sensor and CO2 alarm which can provide an early warning of a CO2 leak.

Specifications:
AX60 CO2 Safety Monitor
Range: 0.1 to 5 % CO2
Accuracy: +/- 5% of alarm setpoint
Alarm intensity: 88 dbA
Monitor Display: 16 digit 2 line LCD in ppm
TWA Alarm: 5,000 ppm (0.5%) over 8 hours
CO2 Alarms: 15,000 ppm (1.5%) & 30,000 ppm (3%)
Operating Temperature: -5 to 50 °C
Central Unit Dimensions: 175 x 110 x 75 mm
Sensor & Alarm Dimensions: 72 x 170 x 45 mm
IP Rating: IP55 (IP54 Central Display Unit)
Warranty: 5 years for electronics and sensor
