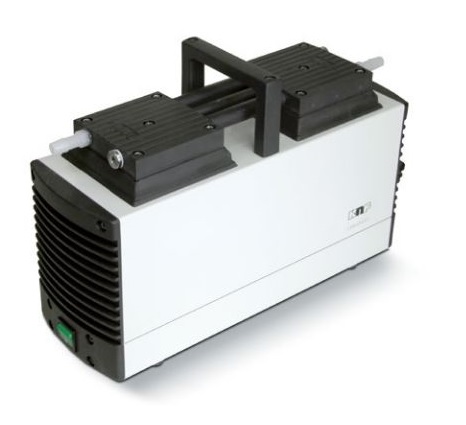

Mini Diaphragm Vacuum Pumps LABOPORT®, N 938.50 KT.18
-Application: Filtration, SPE, Degassing, Fluid aspiration
-Flow rate up to 1.8 m≥/h / Ultimate vacuum up to 15 mbar abs.
-Ensures exceptionally fast evacuation by the parallel and in series connection of both pump heads
-PTFE-coated diaphragm is ideal for aggressive/corrosive gases and vapors

Specifications
Type N 938.50 KT.18
Operating pressure: 0.5 bar
Max. pressure: 0.5 bar
Ultimate vacuum: 15 mbar (abs)
Flow rate: 30 L / min.
Connectors for tube: ID10 mm
Permissible media and ambient temperature: 5 to 40 °C
Pump head: PPS
Diaphragm: PTFE-coated
Valves: FFPM
Protection class: IP 20
Voltage: 230 V
Frequency: 50 Hz
Power: 110 W
Dimensions (W x H x D): 110 x 212 x 317 mm
Weight: 6.8 kg
