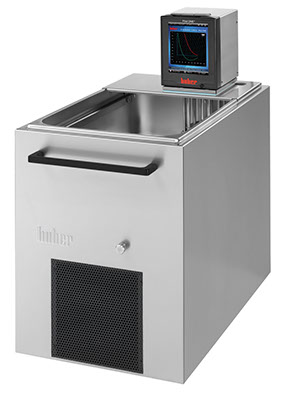

Cooling circulator CC-K25

Combinations of immersion circulators and insulated refrigeration baths are low-cost solutions for direct thermoregulation within the temperature range -20/-30°C to 200°C. The refrigeration baths operate with natural refrigerants. A pump adapter (optional) can be fitted for thermoregulation of externally closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore suitable for external open thermoregulation applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the MPC models.
Working Temp. range -30 ... +200 °C
Cooling capacity kW at 0/-10/-20°C 0.35/0.27/0.16
Bath capacity 25 L
Bath opening 290 x 329 mm
Dimensions (W x D x H) 350 x 555 x 615 mm
Pump max. 27 / 0.7 L/min / bar
